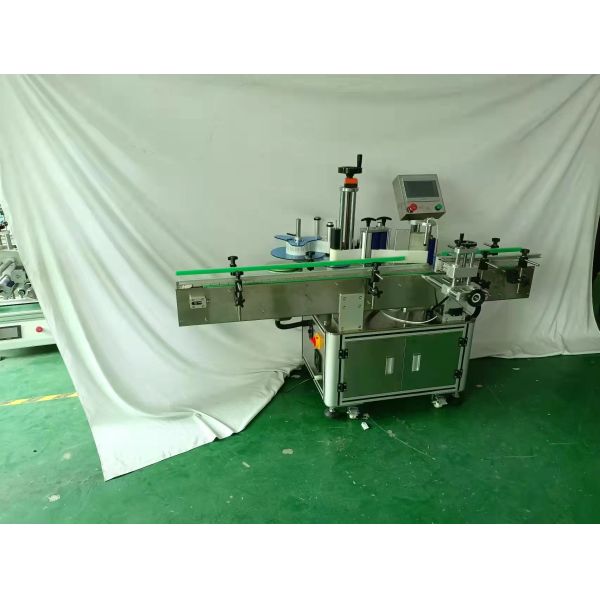

Automatic desktop round bottle labeling machine glass bottle sticker label printing machine
Main Motor:
Adopted 5 phase stepping motor as the main labeling motor. Main difference between 2 phase and 5 phase and miocro stepping motor is the resolution of the the driver.
2 phase stepping motor has 400cells/circle,5 phase stepping motor has 1000 cells/circle.
It shows that the micro stepping motor performs best,speed up and down time is short,low dynamic inertia,suitable for labeling driving,high precision.
Operation:
Easy touchtone operation panel,toolless maintenance,shorten the worker’s training time.
Machine Design
1. Wear-resistant label rolling mechanism,use polyurethane material,not wear and tear.
2. Advanced screw wheel feeding mechanism,easy,steady,reliable,not broken bottles.
3. Use imported bearings for transporting wheels,make the bottles rolling agilely,ensure the labeling quality.
4. Durable frame and other parts,standard,changeable,can work 24hours.
5. Case is made of SUS304 stainless steel and T6 aluminum alloy,never rust,meets GMP standard.
6. Rolling wheel press bottle,make the label more fasten.
7. Label sync orientation mechanism,precision ±1mm
8. Multipoint E-stop button fixed on the suitable position of the production,makes it more safe,smooth.
Workflow
Bottle seperating-transporting-labeling-finish
Sticker label:
| Body paper | Use 62g glassine paper. |
| Basic weight | 62g/㎡±5% |
| Thickness | 55μm±5% |
| Anti-tensile strength | Machine direction: 16kg/25mm |
| Cross: 7kg/25mm |
| Anti-tearing | Machine direction:25g/pcs |
| Corss:31g/pcs |
| Transparence | 52% |
| Labels distance | 3-4mm±0.2mm |
| Edge distance between label and body paper | 2mm |
